EL AMP II+

Amp Performance

• Frequency Response: 10Hz-20kHz+/- 0.02 dB 1.

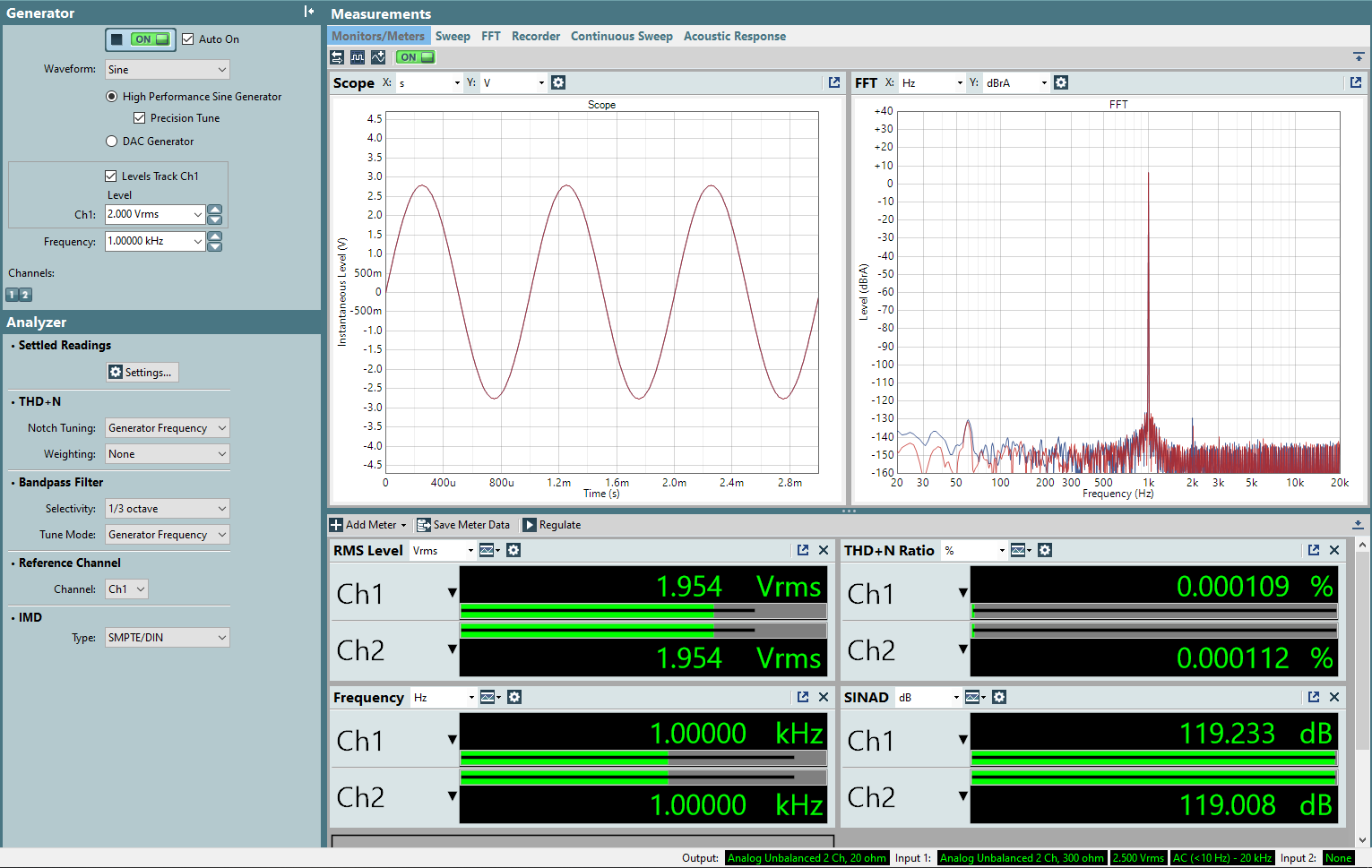

• SINAD @ 1kHz, 2VRMS (RCA): 119 dB
• SINAD @ 1kHz, 4VRMS (TRS): > 114 dB
• SINAD @ 1kHz, 50mV (RCA): 90 dB
• IMD SMPTE: -95 dB
• Noise (20-20kHz): 1.99 μV
• Crosstalk @ 10kHz: -85 dB
• SNR (20-20kHz): 122 dB
• Dynamic Range (AES17): 120 dB
• Output Impedance: < 0.7 Ω
• Channel Balance: +/- 0.56 dB
• Max Continuous Power, 600 Ω: 160mW (9.8VRMS)
• Max Continuous Power, 150 Ω: 650 mW (9.8 VRMS)
• Max Continuous Power, 32 Ω - Standard: 1.3 W (6.53 VRMS)
• Max Continuous Power, 32 Ω - Boosted: 2.3W (8.68 VRMS)

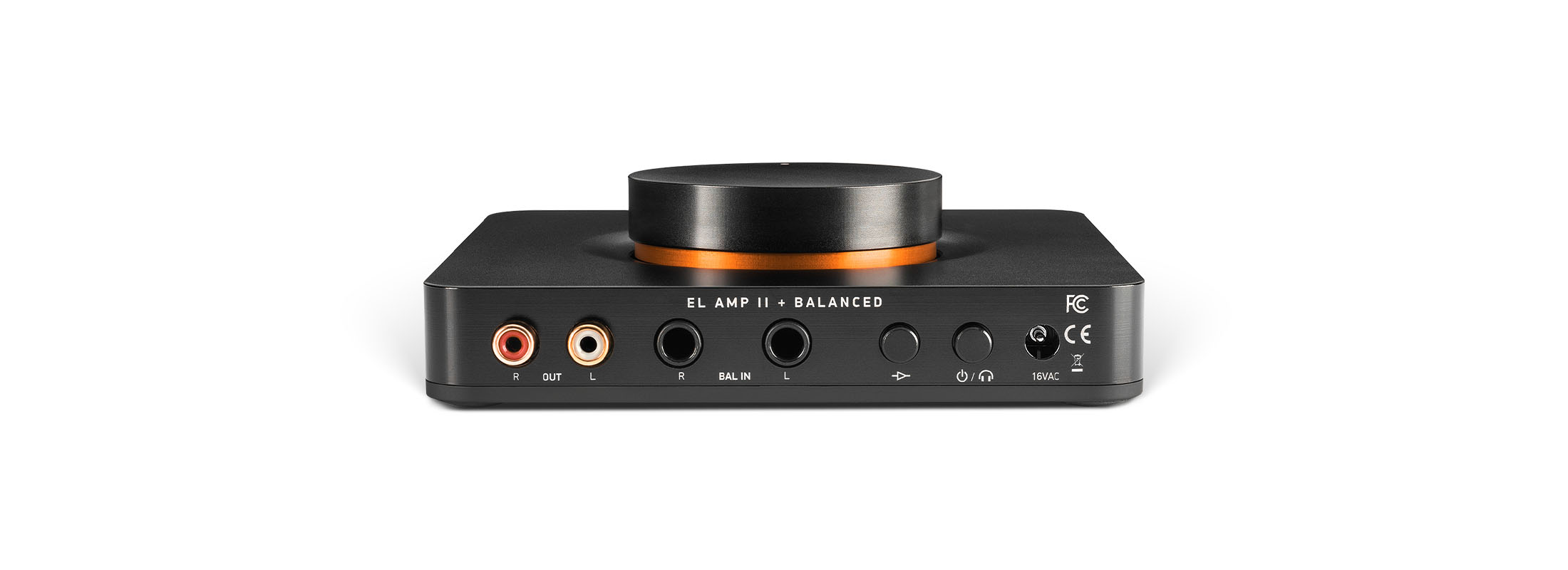

Connectivity

• Headphone Output: 6.35mm (1/4")
• Analog Input: RCA or Balanced TRS
• Preamp-Output: RCA

Configuration

• Dual Gain (RCA): 1.0x and 4.73x
• Dual Gain (TRS): 1.0x and 2.43x
• Volume Potentiometer Taper: Alps 15A

Dimensions

• Case Dimensions: 5.8 x 5.8 x 1.6 in
• Weight: 17 oz

Packaged Items

• EL Amp II+
• 16VAC Power Adapter
