ND75 Keyboard
By Chilkey
ND75 Keyboard
Disclaimer
Quick Start Guide
QC Standards by Chilkey
ND75 Details
Assembled Edition kit contents
- Fully assembled, ready to use keyboard with the following components already installed:
- PC plate (installed)
- Lubed, plate mount stabilizers (installed)
- Tri-mode, per-key RGB, hot-swap PCB (installed)
- WS Dopamine aka Gateron EF Switches (installed)
- Double-shot PBT keycaps in Cherry profile (installed)
- 2x 1800mAh batteries (installed)
- Split o-ring mounting system (installed)
- Silica gel particle mounting system
- Extra screws for top mount system
- Type-C USB cable
- 2.4Ghz receiver
- Extra screen connector cable
- Dust-proof cloth bag for this first batch. Semi-transparent frosted plastic bag in future batches
Essential Edition kit contents
DIY kit that requires assembly. Switches and keycaps are not included
- Top and bottom case
- PC plate
- Plate mount stabilizers
- Tri-mode, per-key RGB, hot-swap PCB
- Screen
- Split o-ring mounting system
- Silica gel particle mounting system
- Extra screws for top mount system
- 2x 1800 mAh batteries
- Type-C USB cable
- 2.4Ghz receiver
- Screen connector cable
- Dust-proof cloth bag for this first batch. Semi-transparent frosted plastic bag in future batches
Keycaps specifications
Assembled Edition only
- Profile: Cherry
- Material: PBT
- Legend process: Double-shot
- Color: Matching the case, as shown in photos / renders.

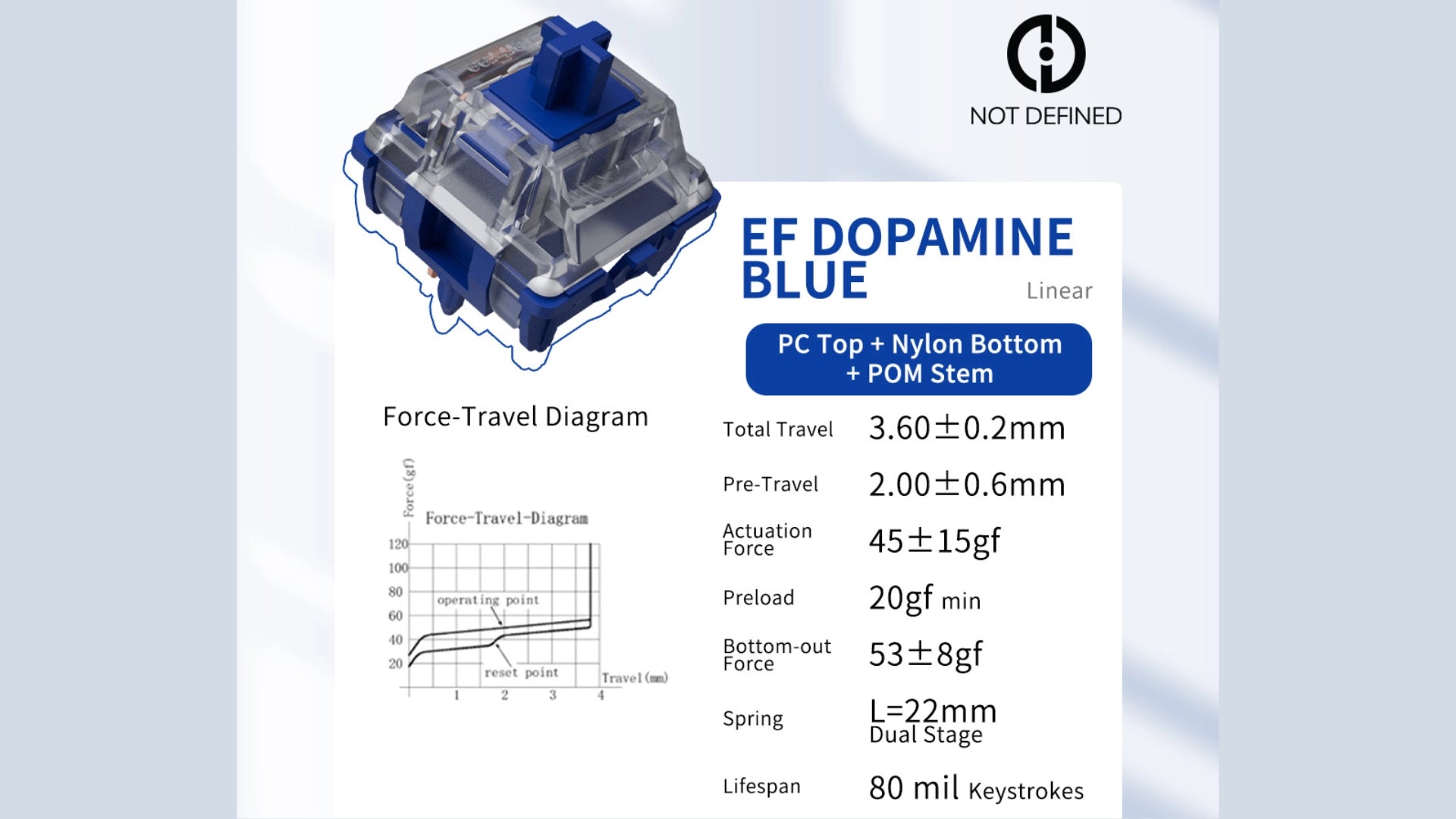

Switch specifications
Assembled Edition only
- Linear switch
- Top housing: Polycarbonate
- Bottom housing: Nylon
- Stem: POM
- Bottom-out force: 53 ± 8gf
- Spring: 22mm Double-stage
- Total travel: 3.60 ± 0.2mm
- Pre-travel: 2.0 ± 0.6mm
- Actuation force: 45 ± 15gf
- Lifespan: 80 million keystrokes

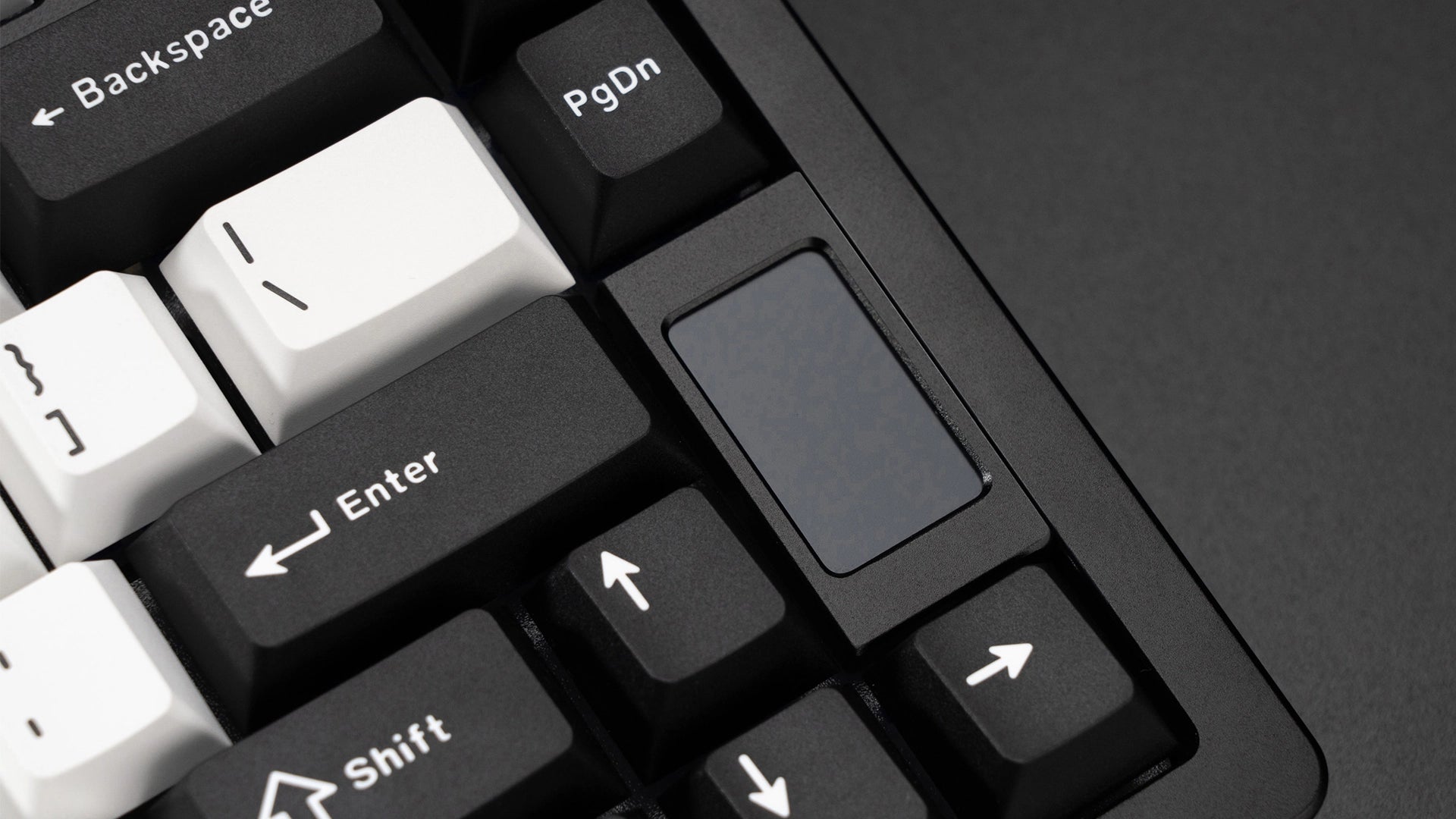

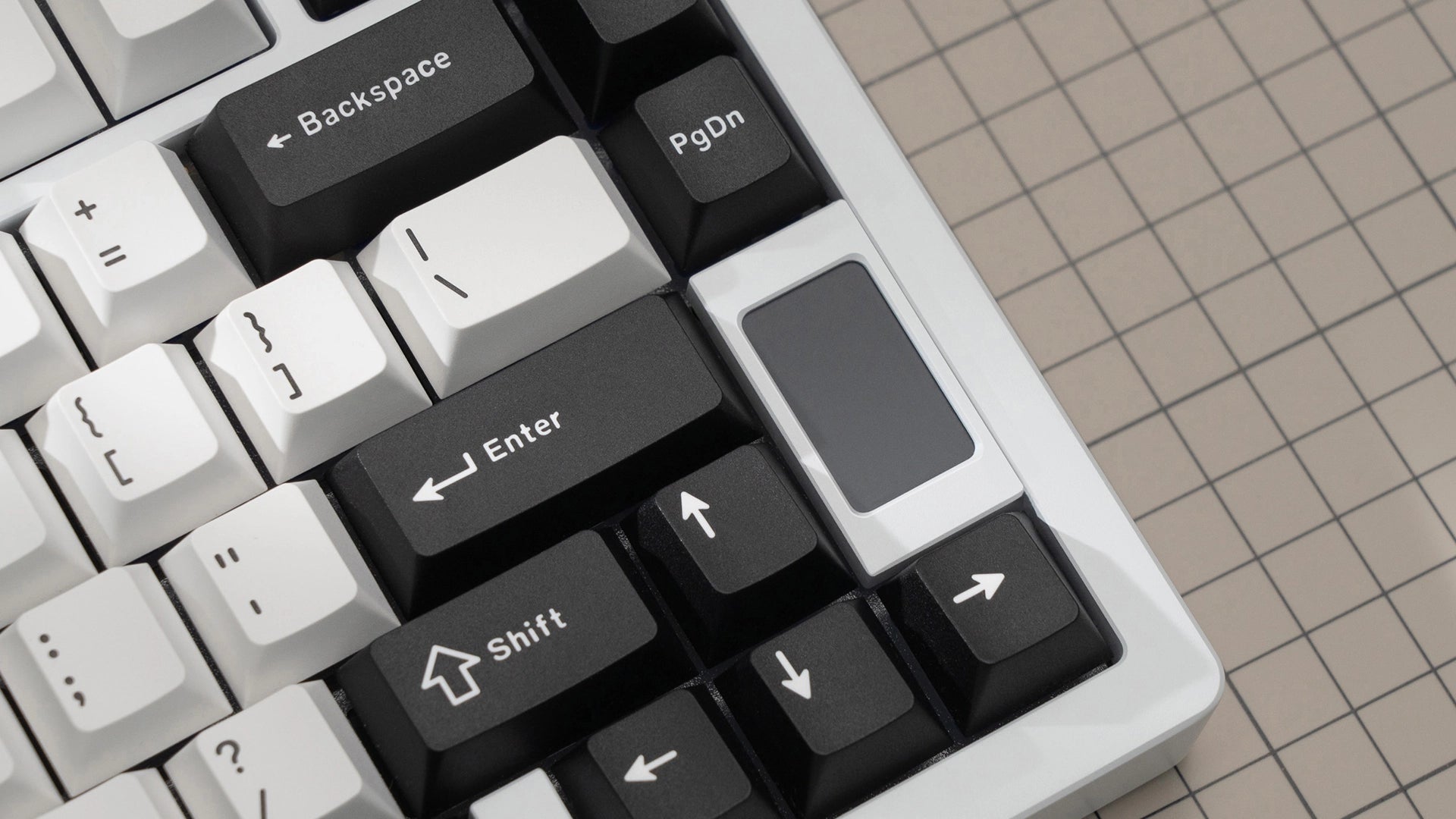

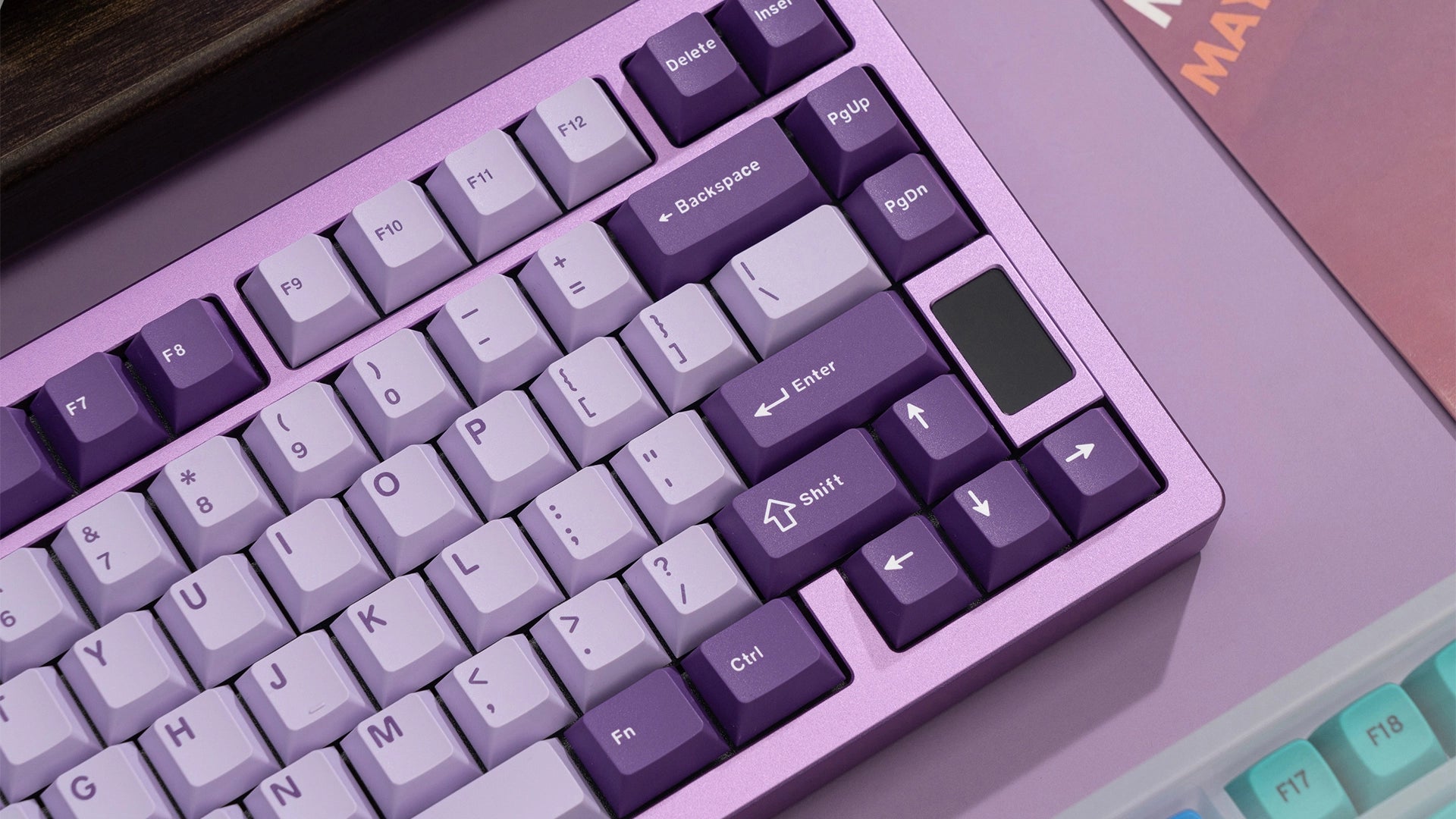

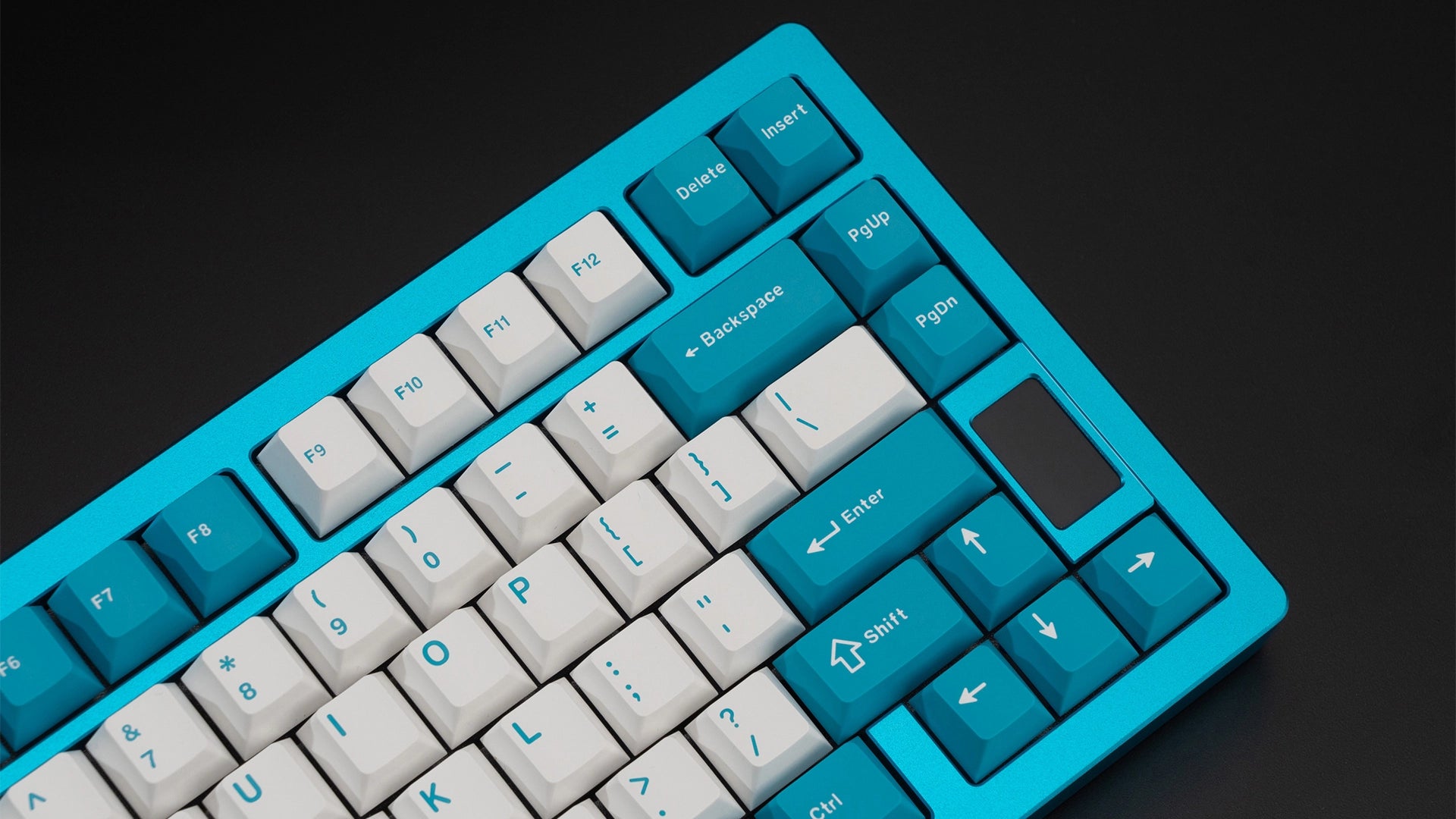

LCD Screen
Configure settings like Effects, Brightness, System Volume, Language using this fully functioning LCD Screen..
Features

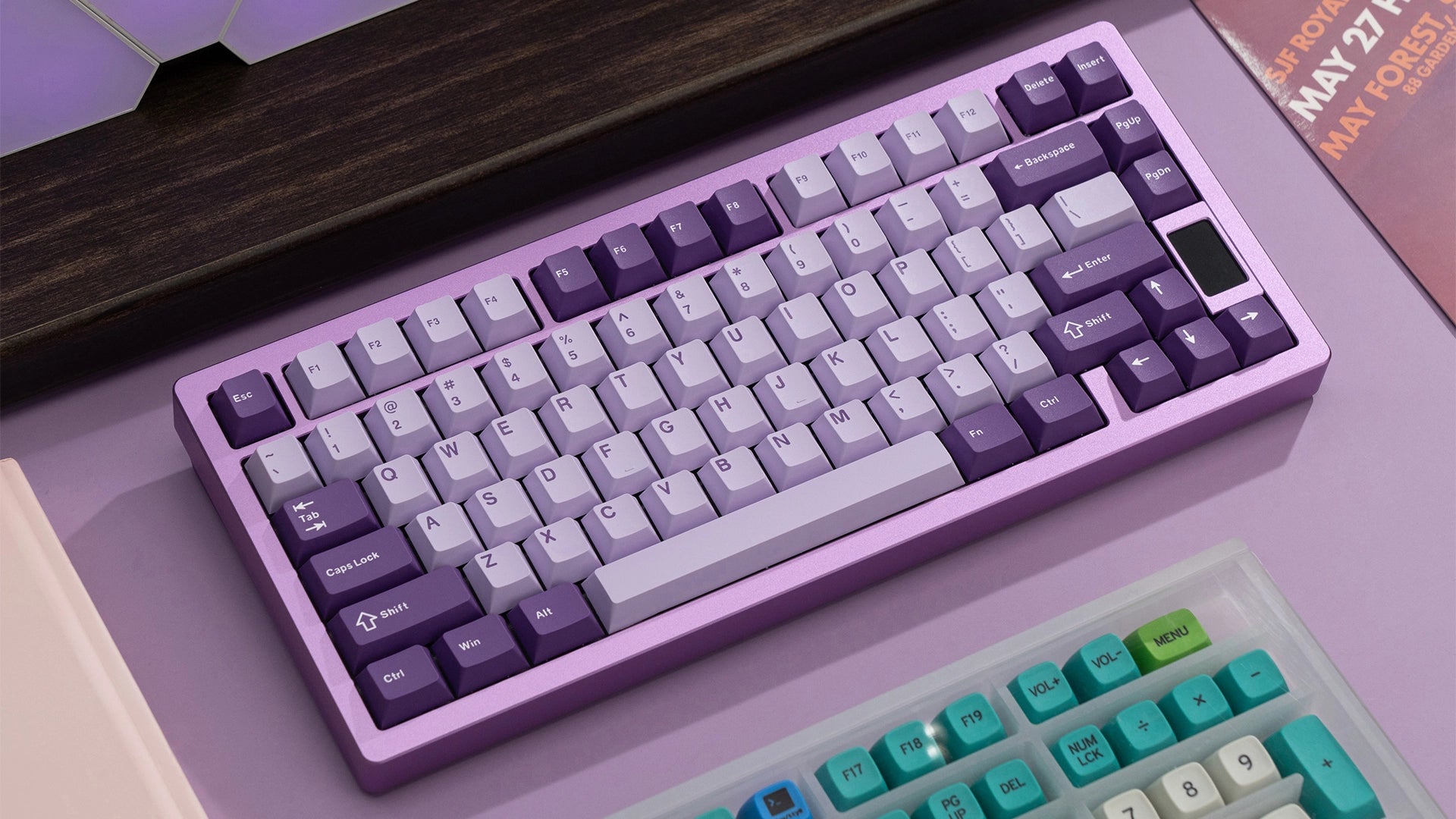

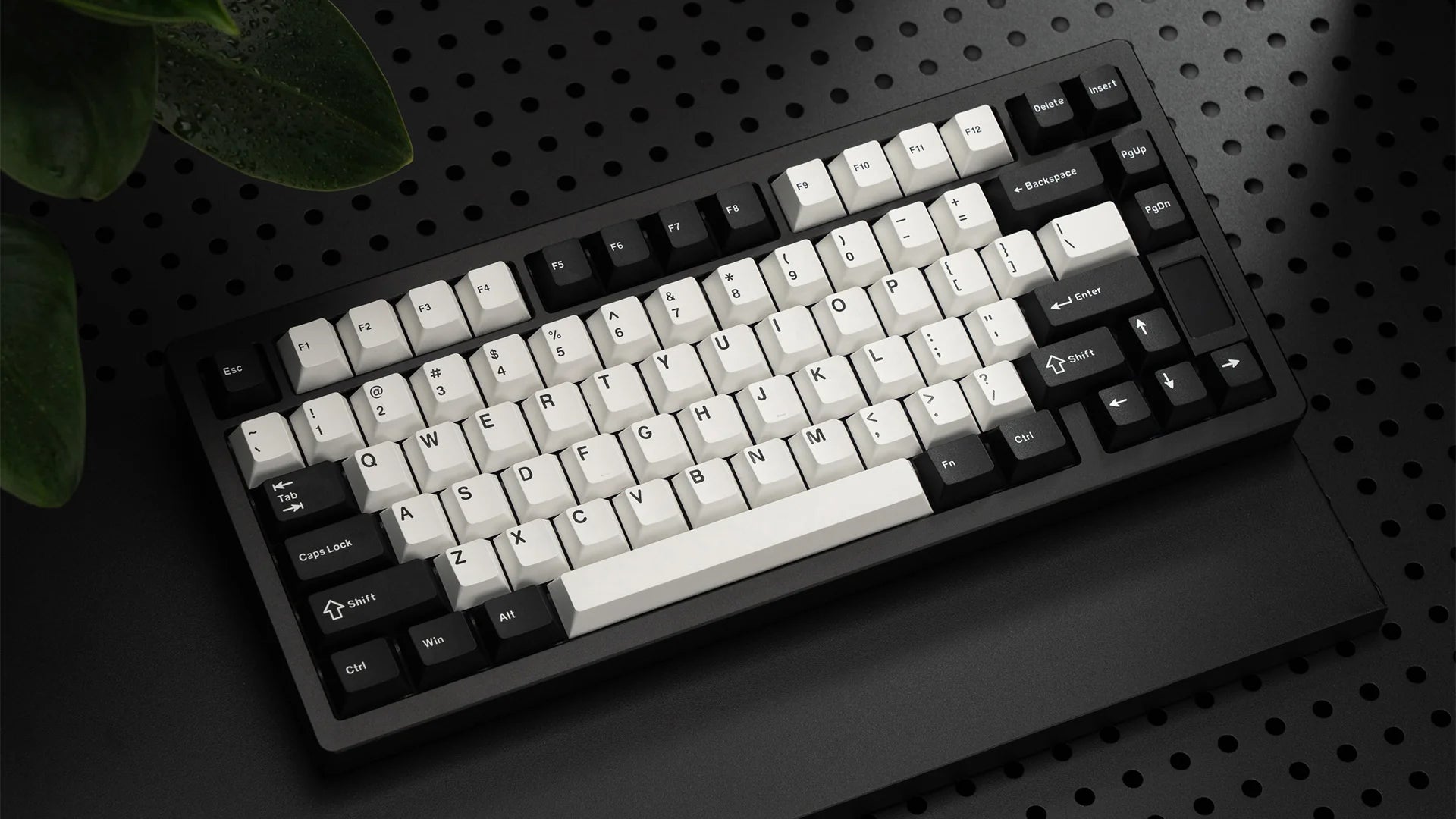

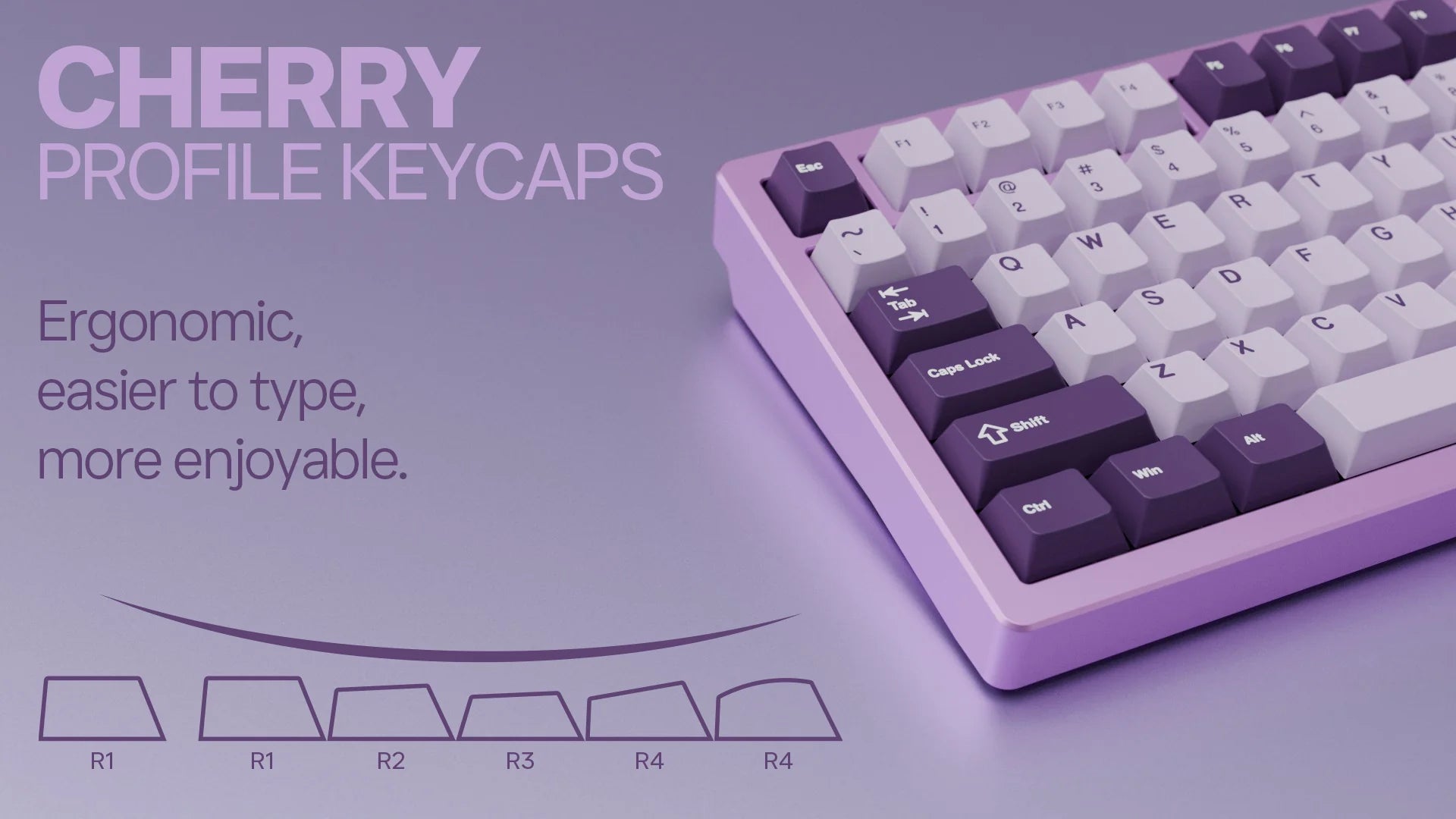

Cherry Profile Keycaps Included
Assembled Edition Only

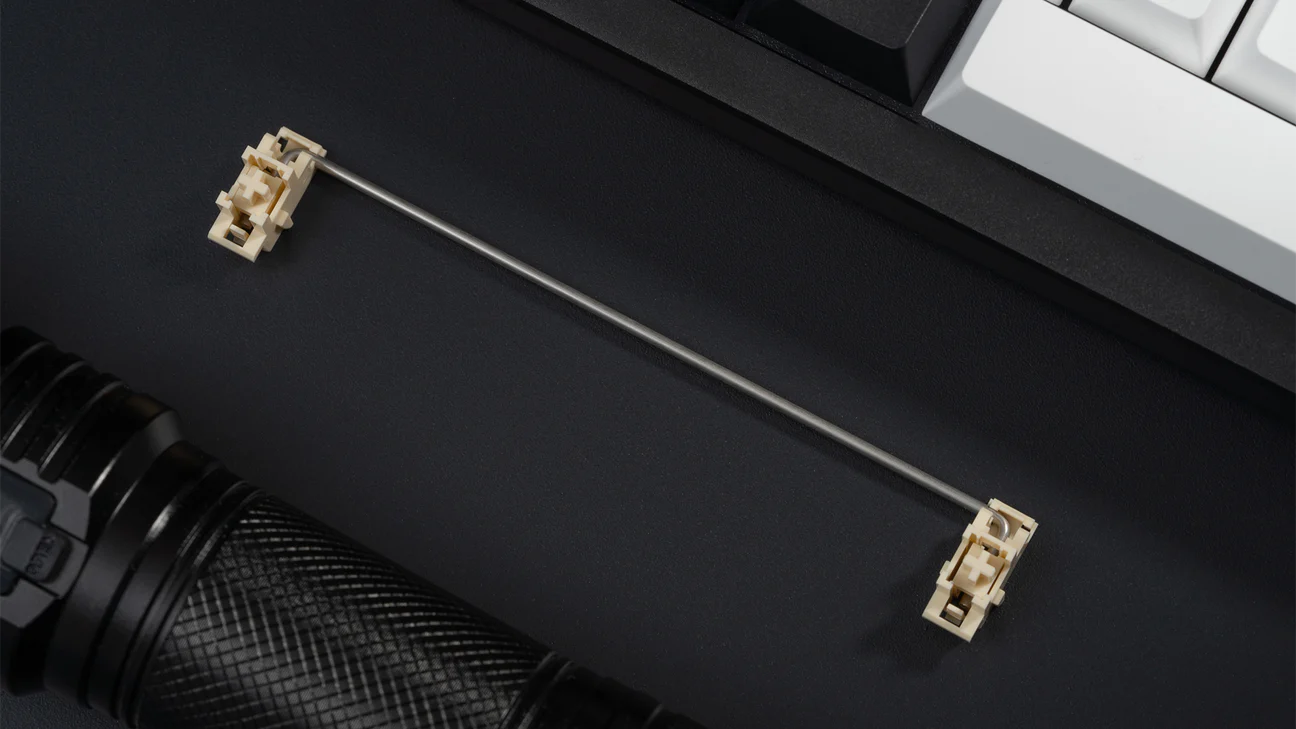

ND75 Lubed Stabilizer
Assembled Edition Only
Smooth Lubed Switches
Assembled Edition Only

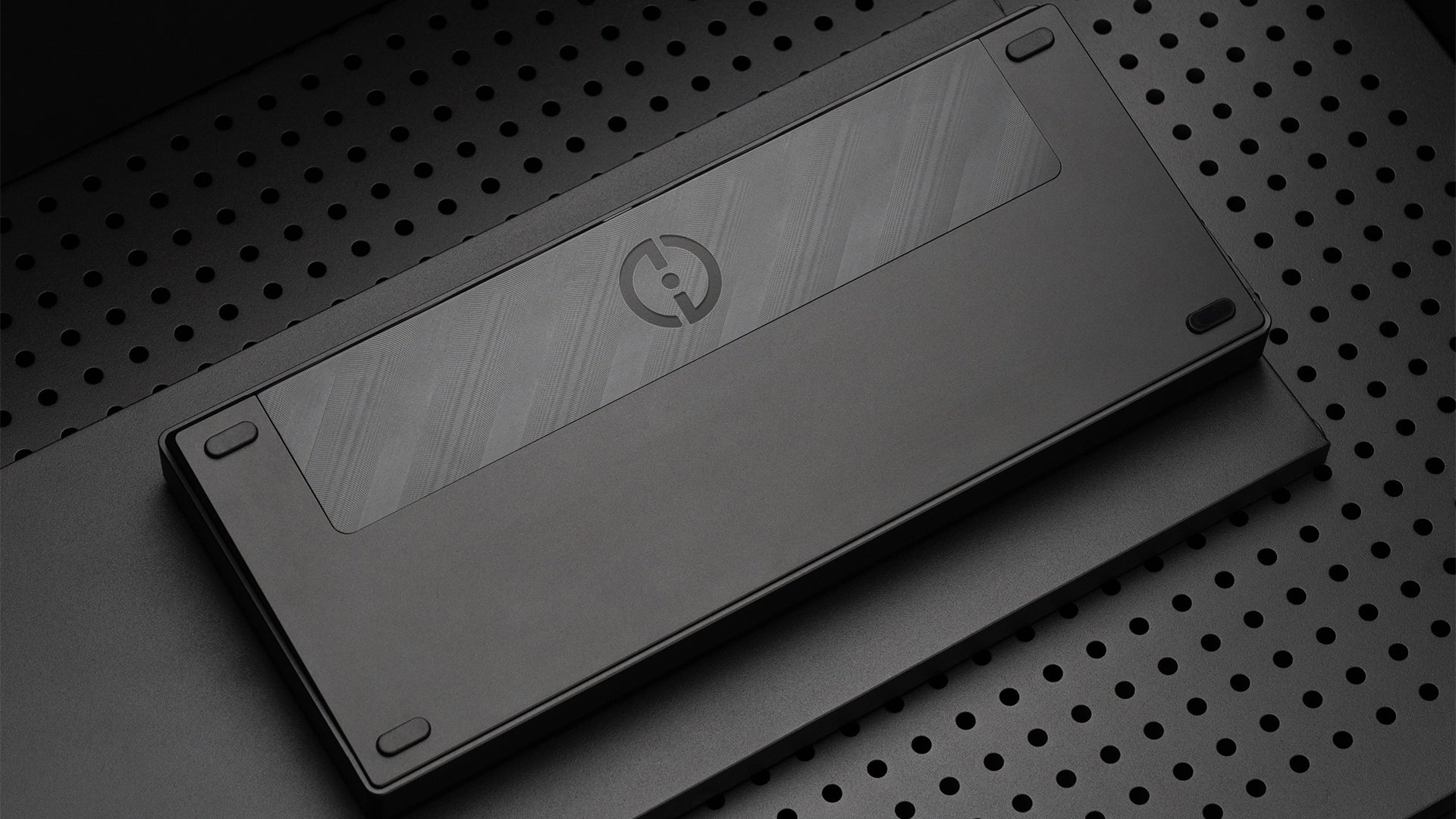

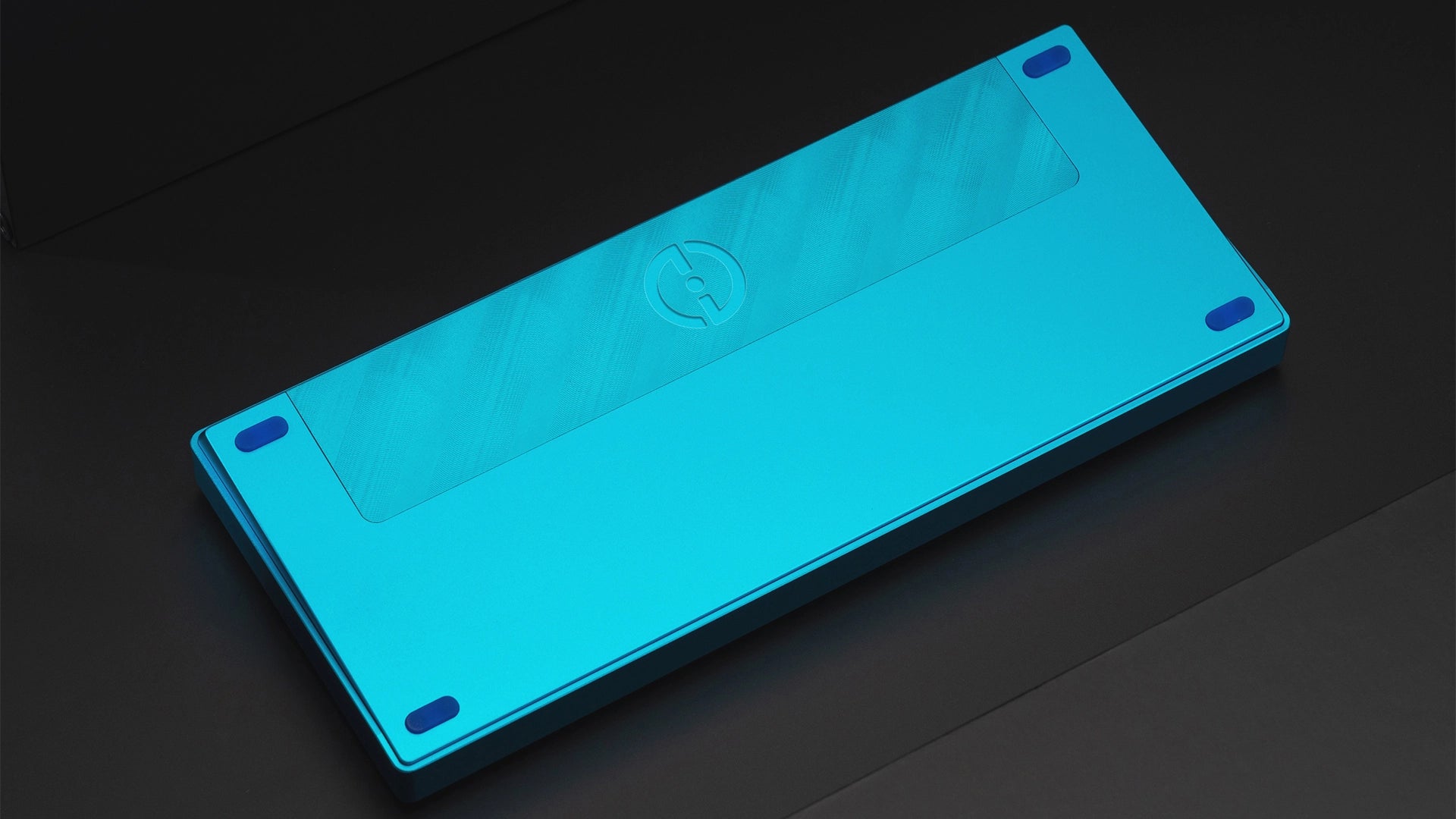

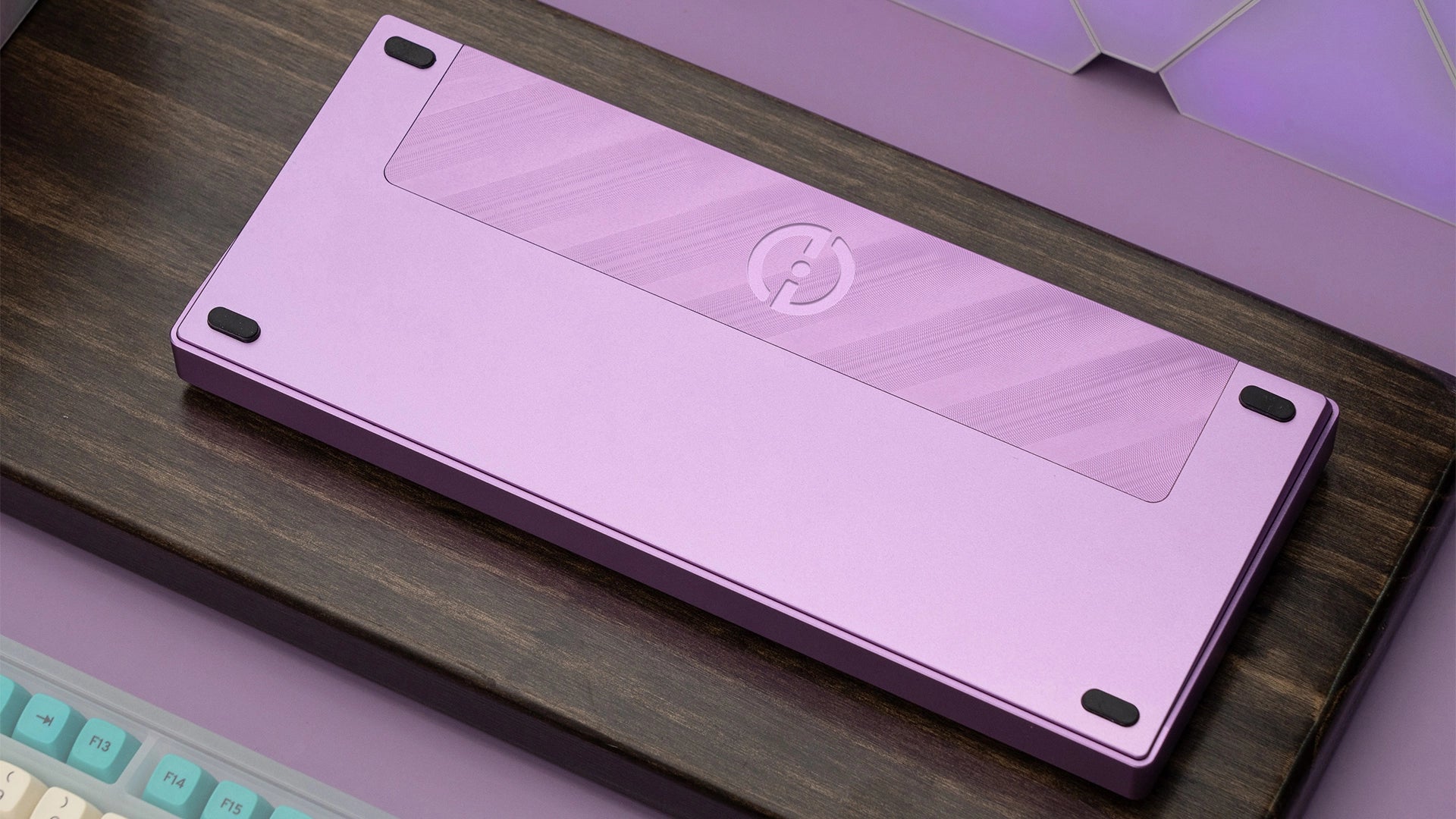

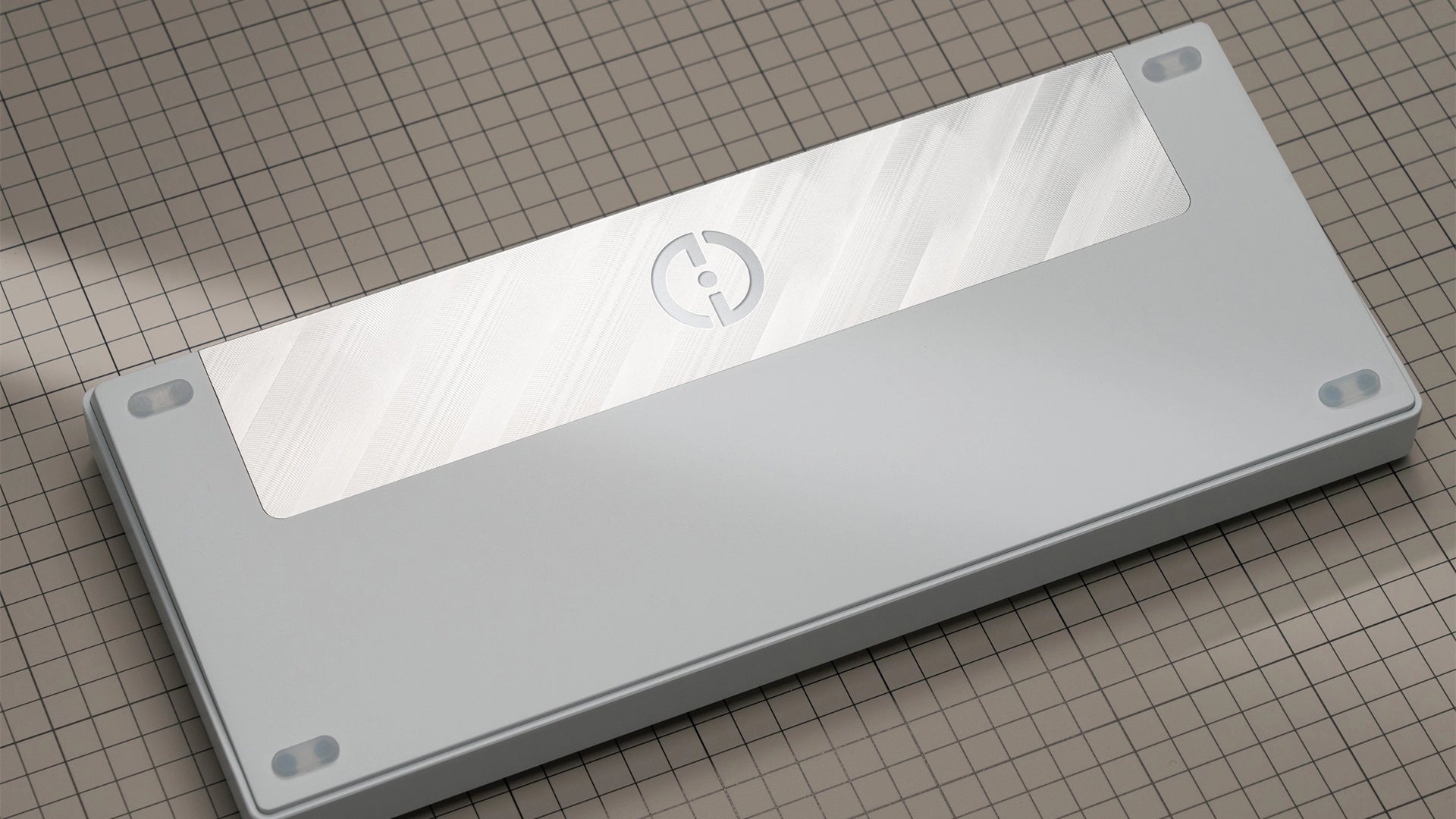

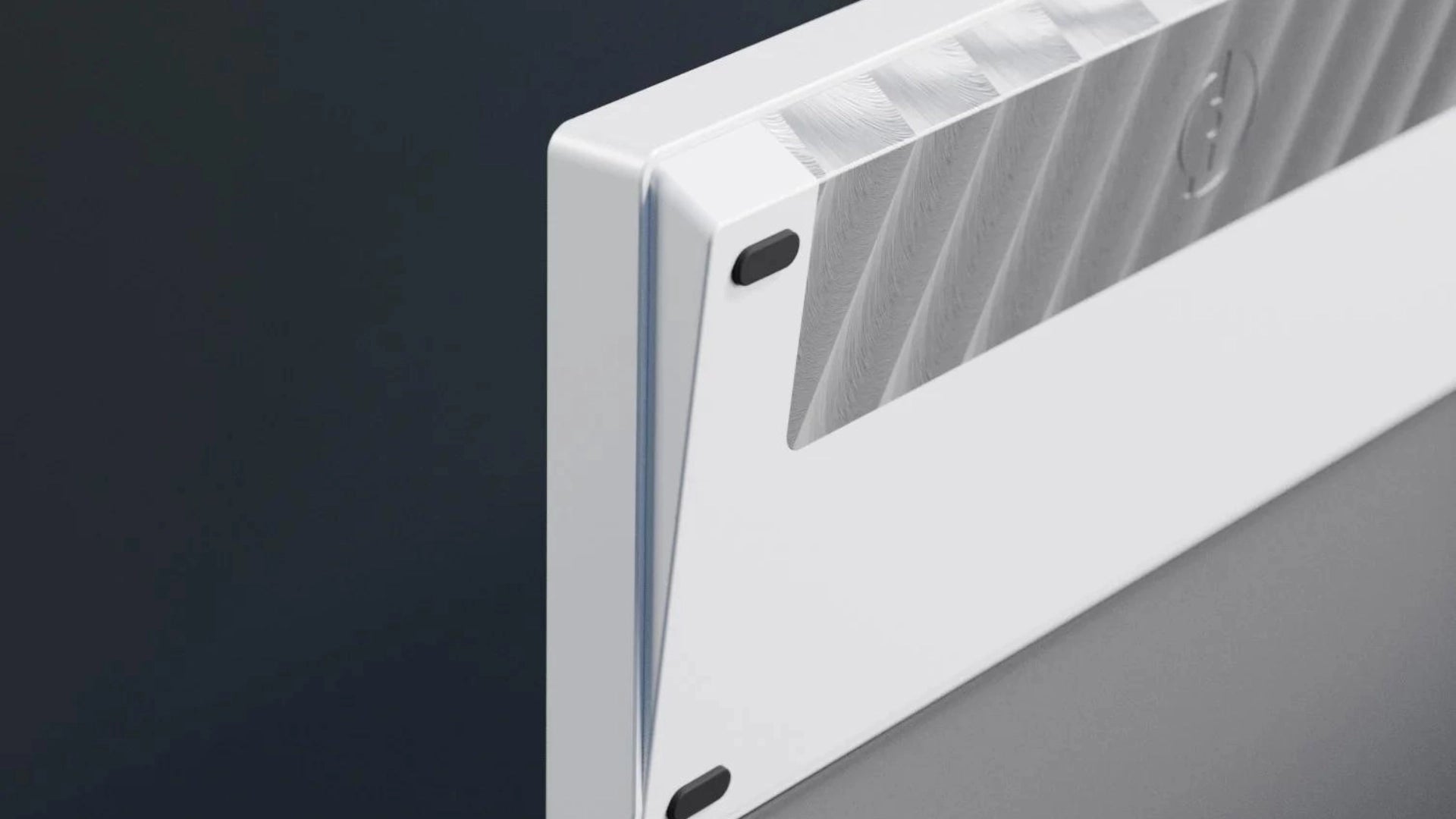

Raw Aluminum with Beautiful Pattern
Screwless Quick Assembly

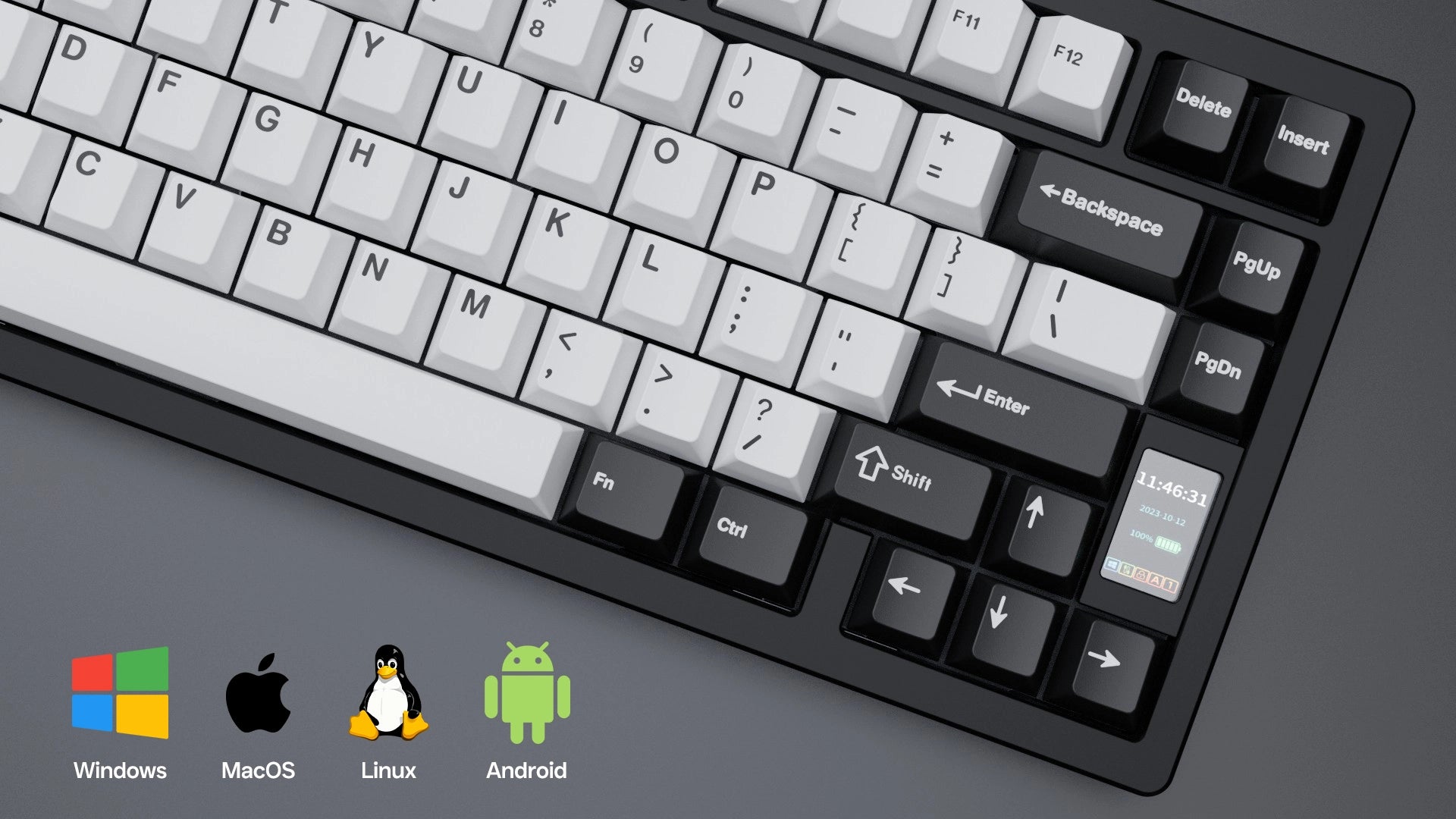

Multi-OS Support
Mounting Methods

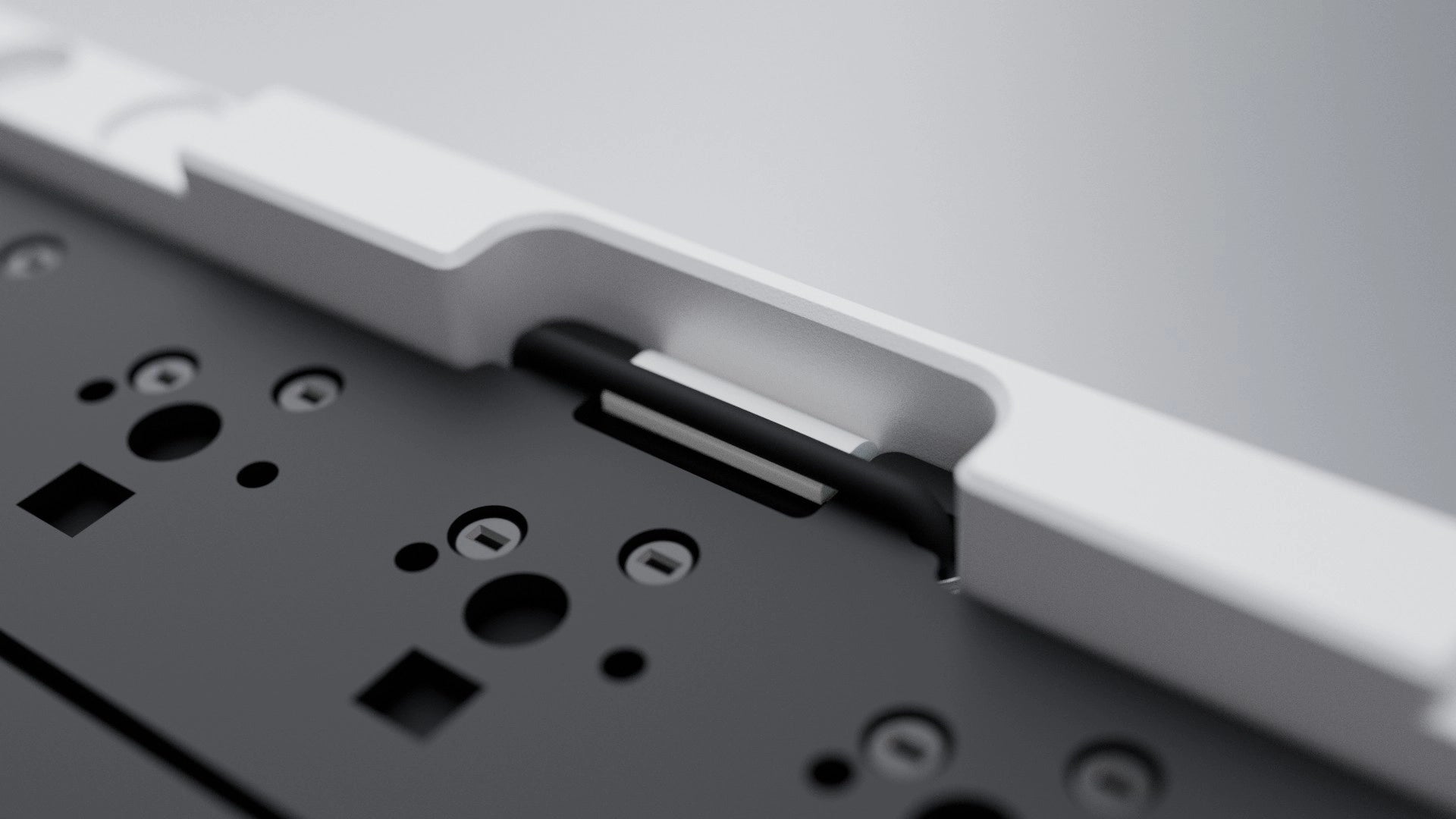

Split O-Ring

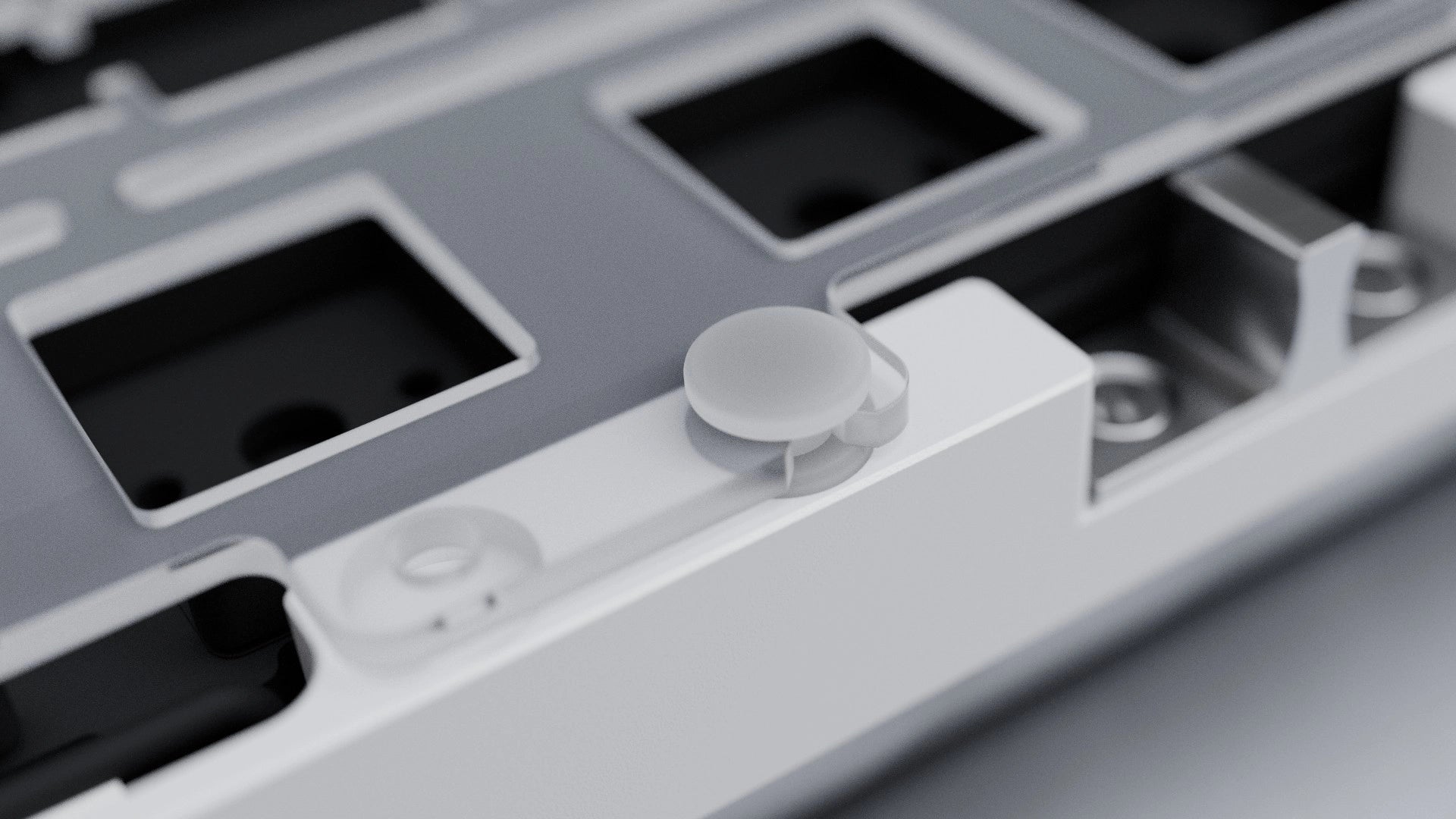

Silica Gel

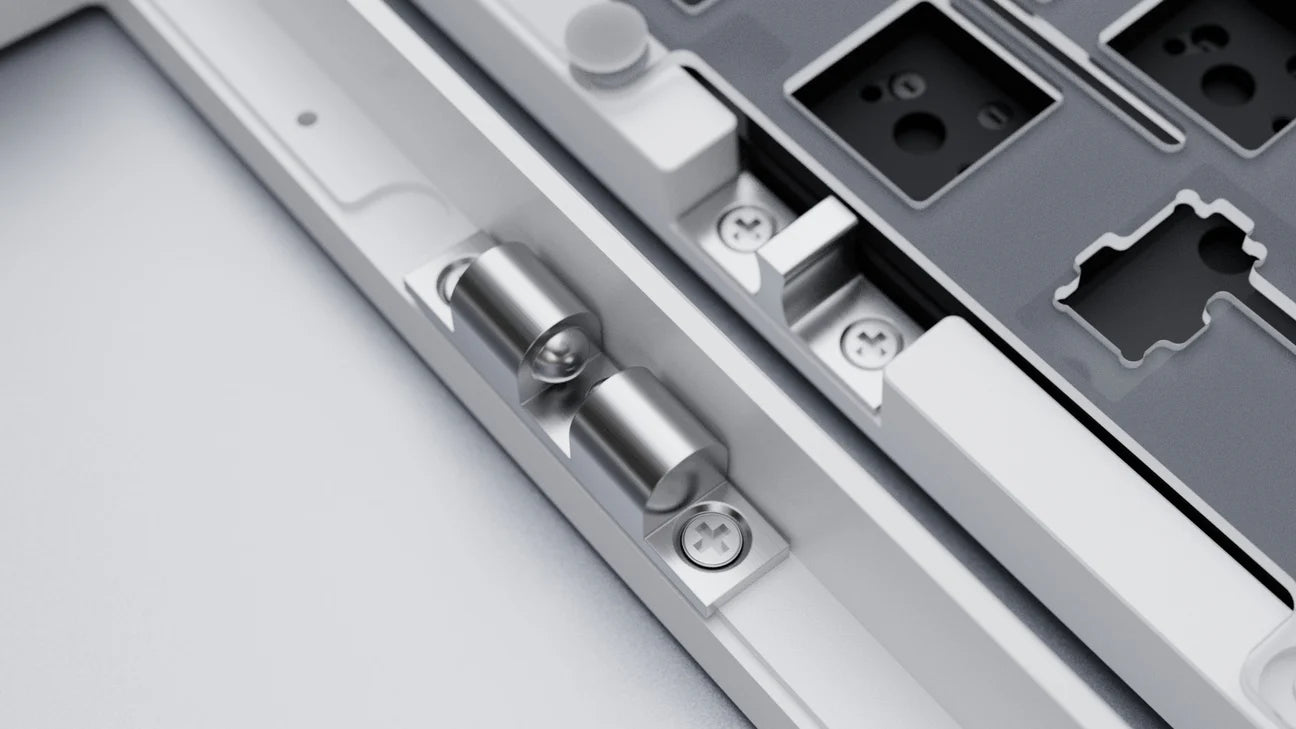

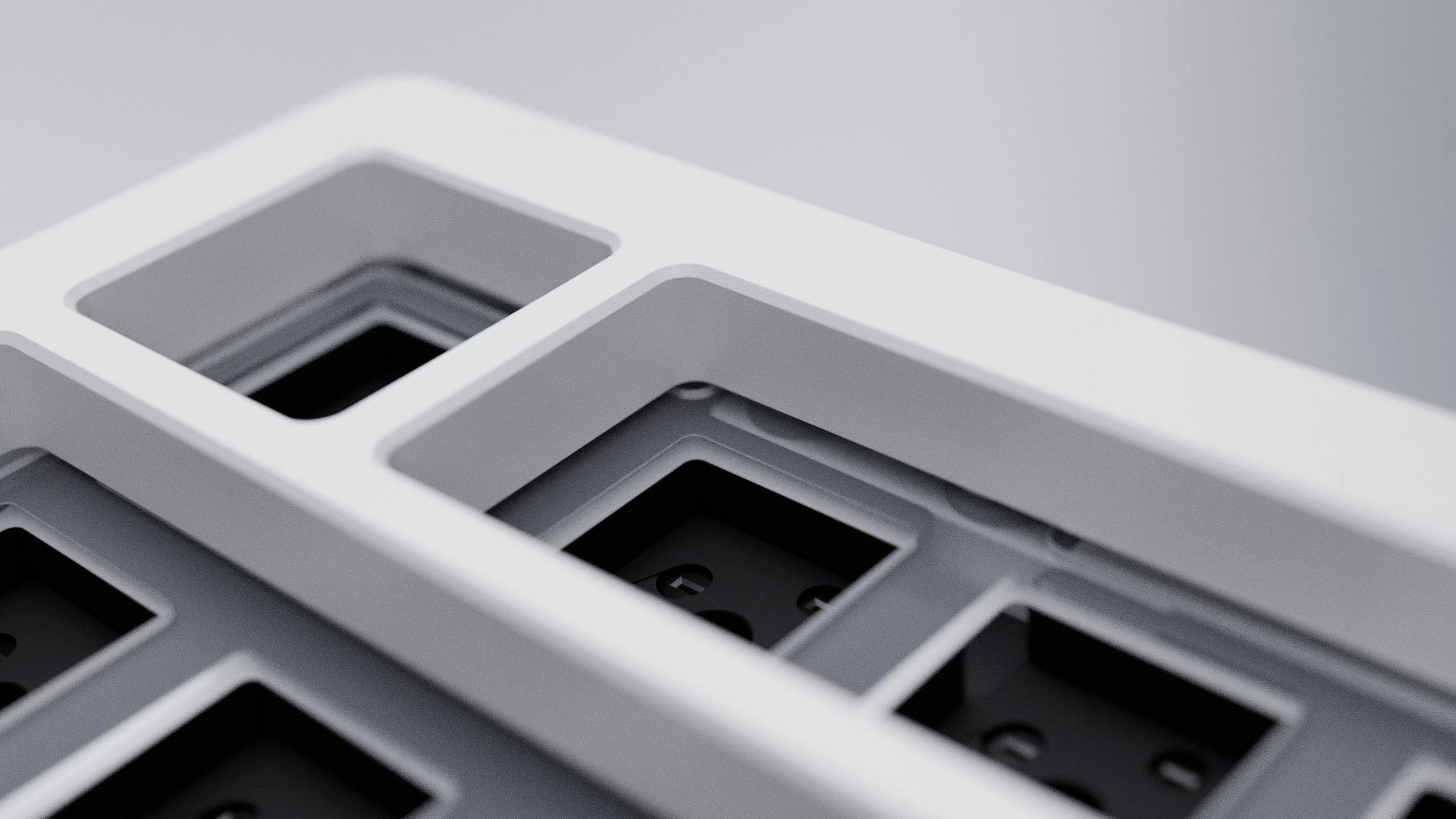

Top Mount
