Vida Keyboard - Blush

SKU: KEYBOARD-VIDA-BLUSH-WK-PC-SOLDER
Group Buy
Sale price$325.00 CAD
Sold out
Layout: WK
Plate: PC
PCB: Solder
Group Buy Information

Group Buy Time: November 29th to Dec 15th 2024
Estimated Production Complete: Q2 2025
Arrival to Retailers: 6 to 8 weeks after production complete via Sea Freight.

A 60% keyboard by James from AKB | Launching Black Friday

VIDA is the culmination of several rounds of prototypes and community feedback, and we cannot wait to get it into your hands. The top and bottom case assembly is screwless via magnets, we are offering a ZMK powered wireless option, WK/WKL/HHKB will all be offered, and we've got something extra special planned for the Black Friday launch day.

Specs

  • 8 degree typing angle
  • 19.54mm effective front height
  • Screwless (magnetic) case construction
  • ZMK Wireless PCB - learn about ZMK studio here
  • USB 2.0 hub (2 ports) for use when used wired
  • 6063 aluminum top/bottom case
  • Brass internal weights (2) (Blackout edition has aluminum internal weights)
  • Anodized aluminum outer weights (2) -with options for brass and copper weight add-ons
  • Bottom mount plate (with poron dampeners)
  • Nylon alignment pins
  • WK, WKL & HHKB options available for all editions
  • 1,000mAh battery
  • Designed by James from AKB

Options

  • WK, WKL, or HHKB
  • Choice of wired solder, wired hotswap, and wireless hotswap PCB
  • Choice of FR4, PC, Alu, or CF plate
  • Twelve set colorways

Addons Include (Listings & pricing coming soon)

  • PC, Alu, CF, and FR4 plates
  • Solder, Hotswap, and Hotswap Wireless PCBs
  • Daughterboard kit
  • Extra gaskets
  • Foam kit (PCB, plate, and case)
  • Extra tops
  • Extra internal weights
  • Extra external weights

In the box

  • 1x 6063 Aluminum Top Case
  • 1x 6063 Aluminum Bottom Case
  • 2x Internal Weight (6063 Aluminum or Brass)
  • 2x External Weight (6063 Aluminum or Aged Brass)
  • 1x Choice of Plate
  • 1x Choice of PCB
  • 1x USB-C Daughterboard
  • 1x USB 2.0 Hub Daughterboard
  • 1x 6pin to 6pin JST cable
  • 1x 4pin to Molex EZ-Mate cable
  • 8x Poron Gaskets
  • 4x Silicone AKB Feet
  • 1x Battery (If wireless PCB is kitted)
  • 4x Nylon Alignment Pins
  • 16x Magnets (pre-installed)
  • Relevant screws and hardware
  • 1x Microfiber Cloth
  • 1x Foam-Lined Hard Carry Case

Mounting Style

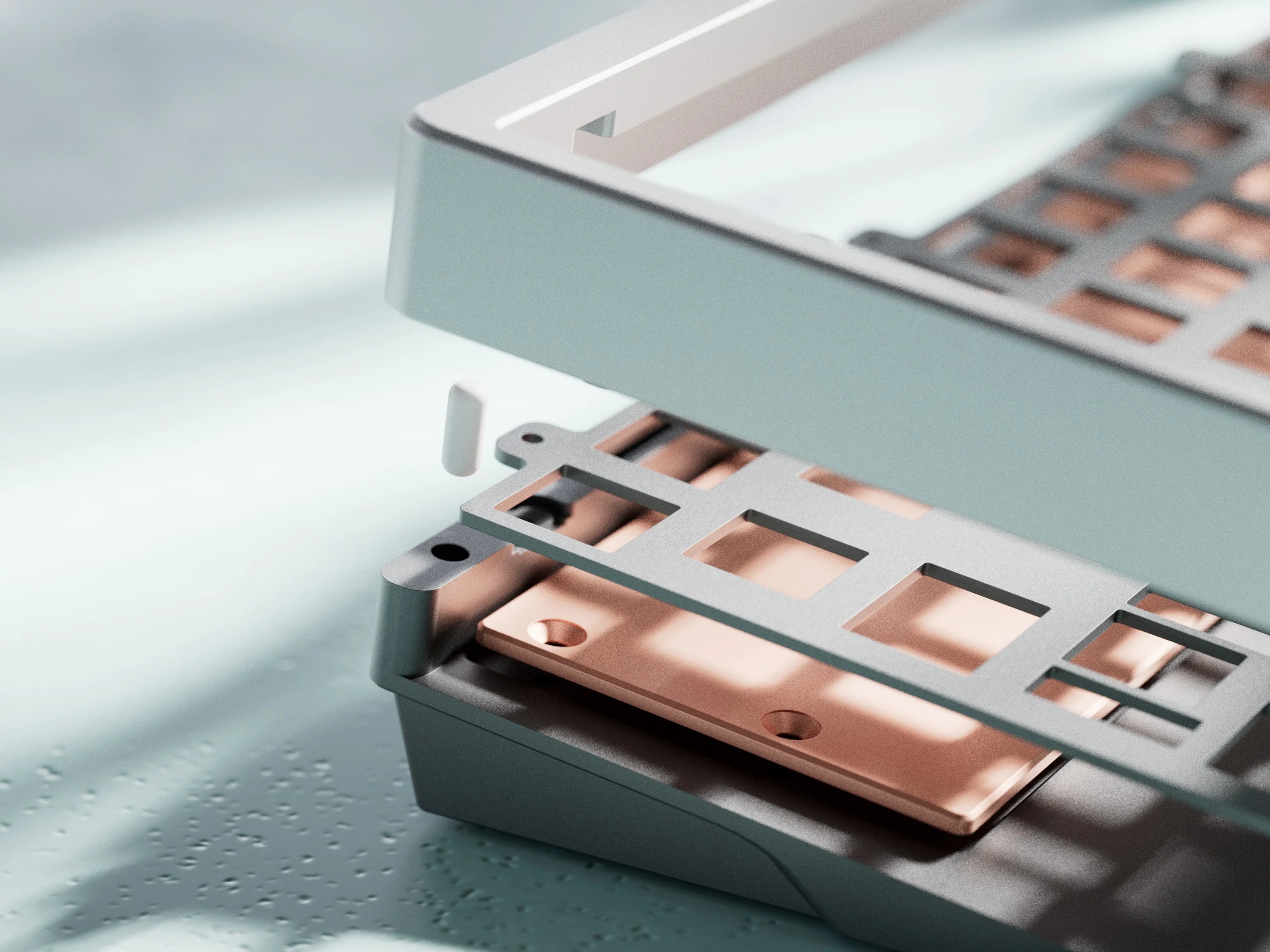

VIDA uses a unique version of bottom mount that utilizes poron dampeners and nylon alignment pins. The plate screws into the bottom case, and the top case is connected to the bottom through integrated magnets that are automatically aligned thanks to the alignment pins.

Elegantly Designed

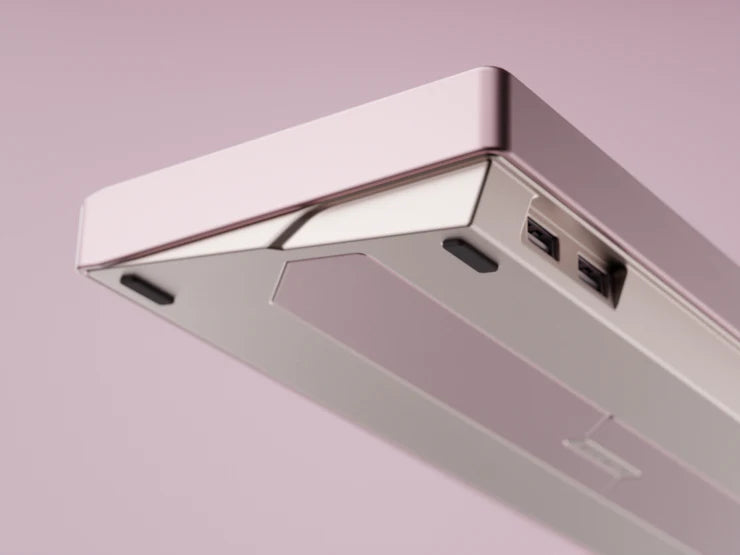

VIDA combines form and function with it's stunning side profile, and seamlessly integrated USB hub. When wired, you can connect USB devices to save some desk space and reduce clutter.

Wireless Enabled

VIDA is designed with wireless in mind. Opt for the wireless kit to receive a ZMK powered PCB and battery that slots into the bottom case. Alternatively, you can choose a standard wired PCB. To learn more about ZMK, check out our recent blogpost.

Layout Support
Wired Solder PCB
Wired Hotswap PCB
Wireless Hotswap PCB
